Numer produktu: R4E3V5SC846BE16
Serwer Supermicro rack 4U. Posiada możliwość instalacji 24 dysków twardych. Zbudowany jest w oparciu o obudowę Supermicro SC846 oraz płytę główną Supermicro X11. Można w nim zamontować procesor Skylake Intel Xeon E3-1200V5. Pamięć RAM można rozbudować do 64GB DDR4. Wymagany kontroler RAID lub Karta HBA.
7312,89 zł
brutto
Producent: Gigaserwer/Supermicro
Czas dostawy: zapytaj

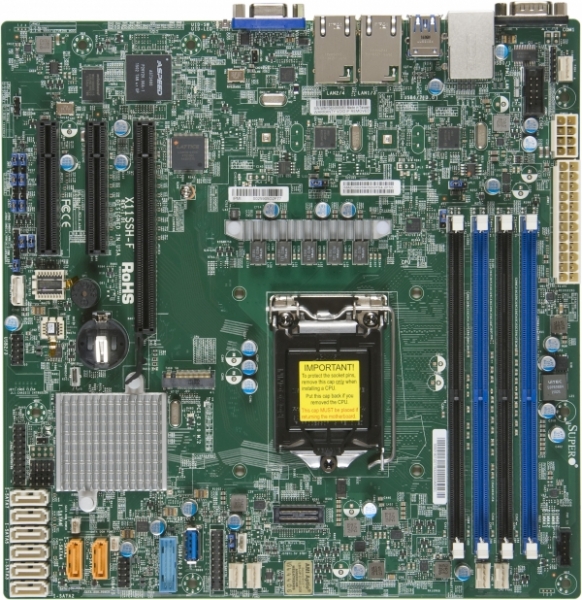

Płyta główna Supermicro X11

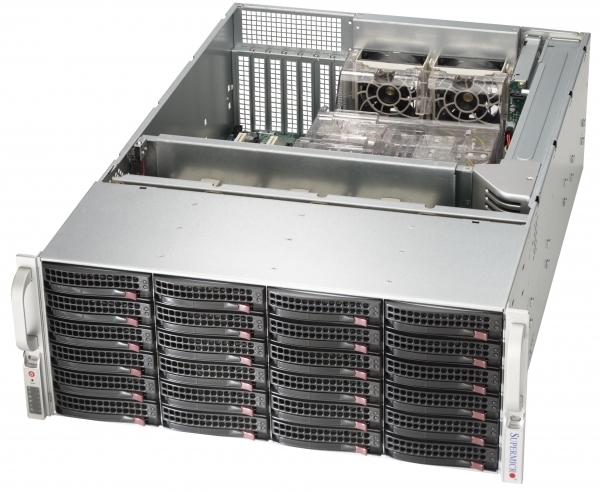

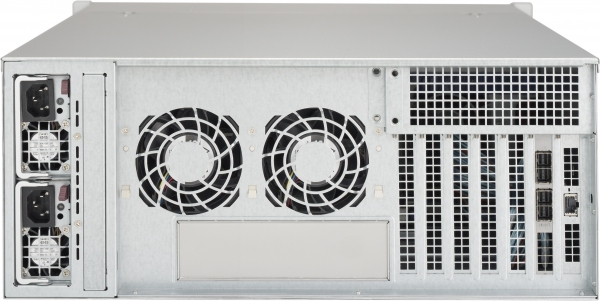

Obudowa Supermicro Rack 4U 836BE16 24xHDD Zasilacz redundantny 2x 920W
| Płyta główna | SuperMicro X11SSH-F |
|---|---|
| CPU | Intel 7th/6th Generation Core i3 series |
| Memory Capacity | 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Chipset | Intel C236 |
| SATA | Intel C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Video | ASPEED AST2400 BMC |
| Network Controllers | Dual Intel Ethernet Controller I210-AT |
| USB | 6 USB 2.0 ports (2 rear, 4 via header(s)) |
| Video output | 1x VGA |
| Serial Port/Header | 2 COM Ports (1 rear, 1 header(s)) |
| TPM | 1 TPM Header |
| PCI-E | 1 PCI-E 3.0 x8 (in x16 slot) |
| M.2 | Interface: PCIe 3.0 x2 |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Software | Intel Node Manager 3.0 |
| Power Configurations | ACPI Power Management |
| Other Features | Control of power-on for recovery from AC power loss |
| Obudowa | SuperChassis 846BE16-R920B |
| Form Factor | 4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX |
| Height | 7" (178 mm) |
| Width | 17.2" (437 mm) |
| Depth | 26" (660 mm) |
| Expansion Slots | 7 full-height & full-length expansion slot(s) |
| Drive Bays | 24 x 3.5" hot-swap drive bay |
| Backplane | 24-port 4U SAS2 6Gbps single-expander backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD |
| Fans | 3 x 8cm hot-swap redundant PWM cooling fan(s) |
| Power Supply | 1U 920W Redundant Platinum Level Power Supply |
| Power Supply Safety / EMC | BSMI |
| Heatsink | SNK-P0046A4 |
