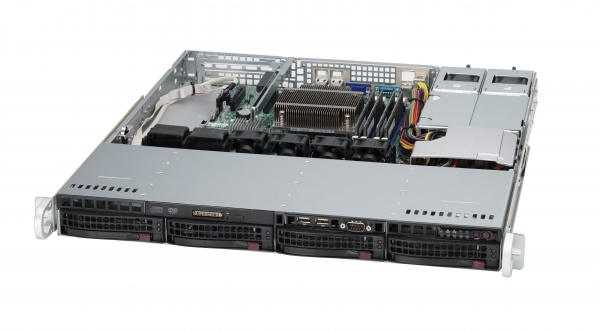

1U 1U chassis for motherboard support size 12" x 10", ATX 12" x 10", Micro ATX 9.6" x 8.6"

400W 1U Redundant Power Supplies with PMbus; Platinum Level

4x 3.5" hot-swap SAS/SATA drive bay with SES2; 1U 4-Port 12Gbps Backplane

4x 40x28mm PWM fan, Optional 2x fans for AOC cooling

1 Optional USB + COM port tray

1 full-height & full-length expansion slot(s); Quick release rail set

Height 1.7" (43 mm); Width 17.2" (437 mm); Depth 19.85" (503 mm)

Supermicro

microATX 9.6" x 9.6" (24.38cm x 24.38cm)

8th Generation Intel Core i3/Pentium/Celeron Processor, Intel Xeon Processor E-2100 series.

Single Socket LGA 1151 supported

Up to 128GB Unbuffered ECC UDIMM, in 4 DIMM slots

2667/2400/2133MHz ECC DDR4 SDRAM 72-bit

4GB, 8GB, 16GB, 32GB

1.2V

Intel C242

Intel C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

ASPEED AST2500

Dual LAN with 1GbE with Intel I210

Aspeed AST2500 BMC

UEFI 256Mb
