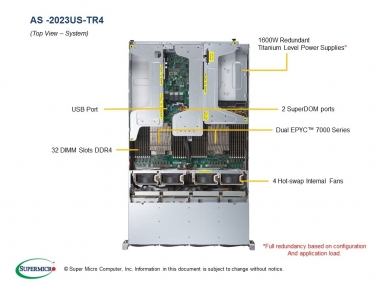

Platforma 2023US-TR4, H11DSU-IN 829U2TS-R1K62P-T, 2U, Dual EPYC 7001/2, 12x 3.5", Redudant 1600W

Dual AMD EPYC™ 7001/7002* series Processors ( Board revision 2.x required)

Socket SP3

DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs

DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required+ 7002 Processors)

12 SATA3 (6Gbps) ports or 12 SAS3 ports support via optional Add-on Card

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC

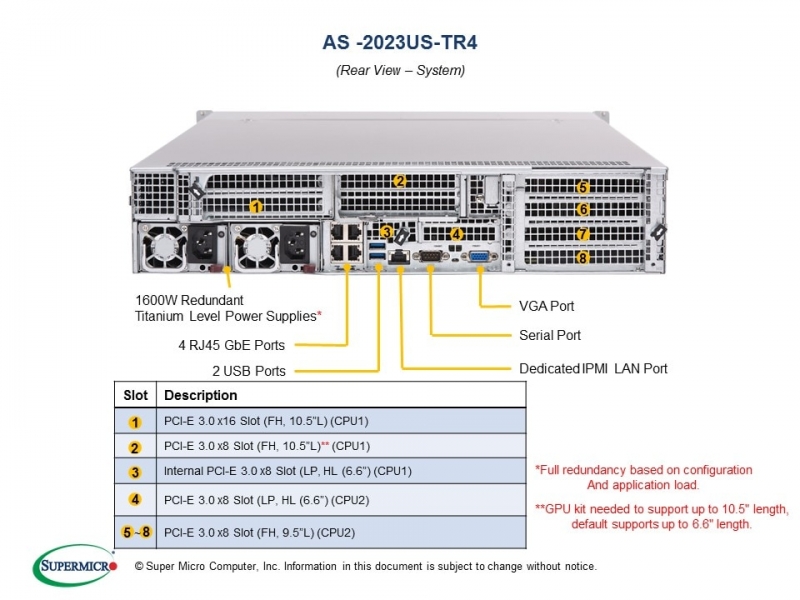

1 PCI-E 3.0 x16 slot (FH, 10.5" L)

5 PCI-E 3.0 x8 slots (FH, 9.5" L)

1 PCI-E 3.0 x8 slot (LP)

1 PCI-E 3.0 x8 (internal proprietary LP slot)

Quad Gigabit LAN ports

1 RJ45 Dedicated IPMI LAN port

3 USB 3.0 ports (2 rear + 1 Type A)

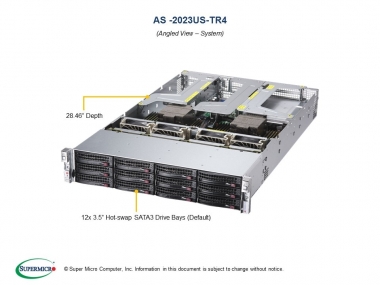

12 hot-swap 3.5" Drive Bays:

- 12 SATA3 by default

Optional Drive Support:

- 8 SAS3 + 4 SAS3/NVMe

- 2 rear hot-swap 2.5" drive bays

4 heavy-duty PWM fans with optimal fan speed control

1600W Redundant Power Supplies with PMBus
