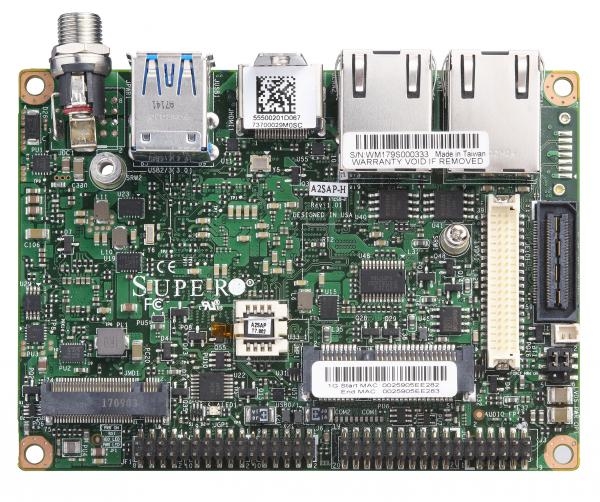

Płyta Główna Supermicro A2SAP-H 1x CPU High Performance SKU

Pico-ITX 2.5" SBC 4" x 2.83" (10.16cm x 7.19cm)

Intel Atom Processor E3940.

Single Socket FCBGA1296

Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1866MHz, in 1 DIMM slot

DDR3L up to 1866Mhz 8GB

2GB, 4GB, 8GB

1.35V

System on Chip

Dual LAN with Intel? Ethernet Controller I210IT

ALC 888S HD Audio

Intel HD Graphics, Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI(max. resolution up to 3840x2160@30Hz)

2 RJ45 Gigabit Ethernet LAN ports

2 USB 3.0 ports (2 rear)

1 Half size Mini-PCI-E (USB2.0 x 1,PCI-E Gen2 x 1), 1 EI/O (1 DP/HDMI, 2 PCI-E x1, 2 USB2.0, LPC, SATA3, SMBus, 12Vsb 2A, 5Vsb 2.8A)

M.2 Interface: SATA and PCI-E 2.0 x1 and USB 2.0,Form Factor: 2242, 3042, Key: B-Key, 1 M.2 2242/3042 B-Key (USB2.0 x 1,PCI-E Gen2 x 1,SATA Gen3 x 1)

AMI UEFI
