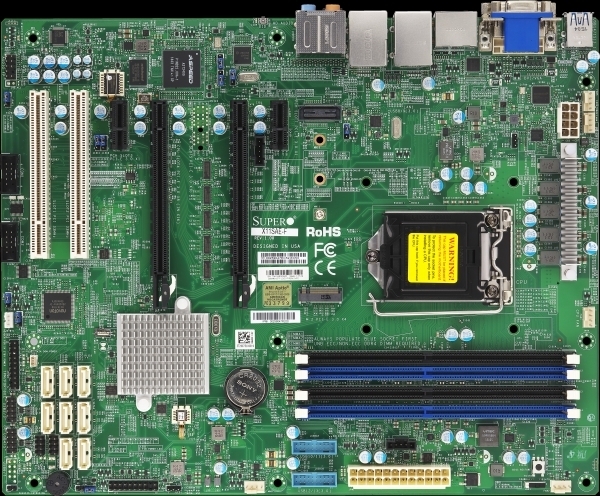

Numer produktu: MBD-X11SAE-B
1 271,78 zł
brutto
Producent: Supermicro
Gwarancja: 36 miesięcy (ograniczona producenta)
Czas dostawy: zapytaj
| Producent | Supermicro |
|---|---|
| Symbol | MBD-X11SAE-F |
| Wymiary | ATX 12" x 9.6", (30.5cm x 24.4cm) |
| Gniazdo Procesora | Single Socket H4 (LGA 1151) |
| Obsługiwane Procesory | Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i7/i5/i3, Intel Pentium, Intel Celeron processors |
| Chipset | Intel C236 |
| Sloty Pamięci RAM | 4x 288-pin DDR4 DIMM |
| Obsługiwana Pamięć RAM | 16GB, 8GB, 4GB; 2133/1866/1600MHz ECC DDR4 SDRAM |
| Max Pamięć RAM | Up to 64GB DDR4 ECC UDIMM |
| Zdalne Zarządzanie | Brak |
| Karta Sieciowa | Intel I210-AT + Intel PHY i219LM Ethernet Controllers |
| Porty LAN | 2x RJ45 Gigabit Ethernet LAN ports (1 shared with IPMI) |
| Zintegrowany Kontroler RAID | Brak |
| Porty SAS | Brak |
| Porty SATA | 8x SATA3 (6Gbps) RAID 0, 1, 5, 10 |
| Sloty PCI-E | 2x PCI-E 3.0 x16 slots (run at 16/NA or 8/8) 2x PCI-E 3.0 x1 slots 2x 5V PCI 32bit slots |
| Porty USB | 6x USB 3.0 ports (2 rear + 4 via headers), 6x USB 2.0 ports (2 rear + 4 via headers), 2x USB 3.1 (rear) |
| Dodatkowe Złącza | 1 DVI - D, 1 DP (Display Port), 1 HDMI, 1 VGA (for IPMI only); ALC 888S HD Audio; 2x COM ports (2 headers); 2x SuperDOM ports with built-in power; 1x TPM |
| BIOS | 128Mb SPI Flash EEPROM with AMI BIOS |
