Supermicro Barebone A+ Server 4124GS-TNR

CSE-418G2TS-R4016BP

Rack 4U

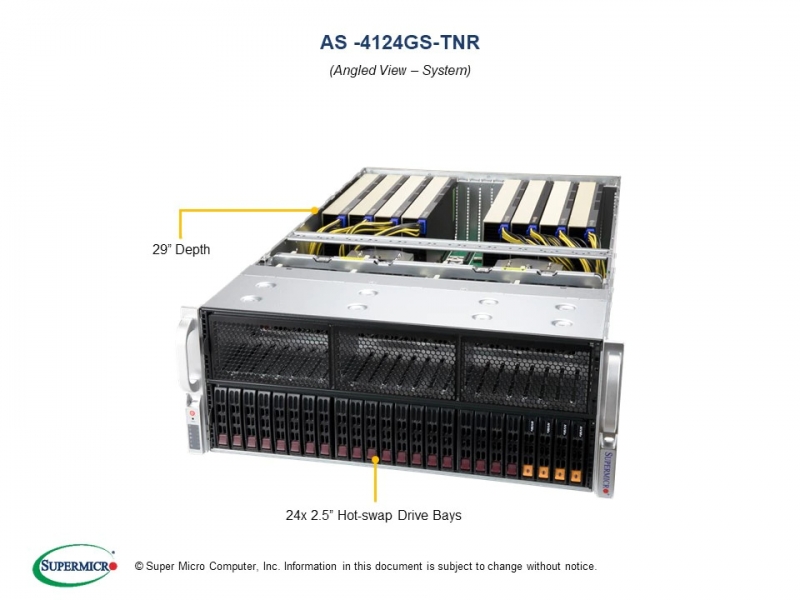

29" x 17.2" x 7"

Super H12DSG-O

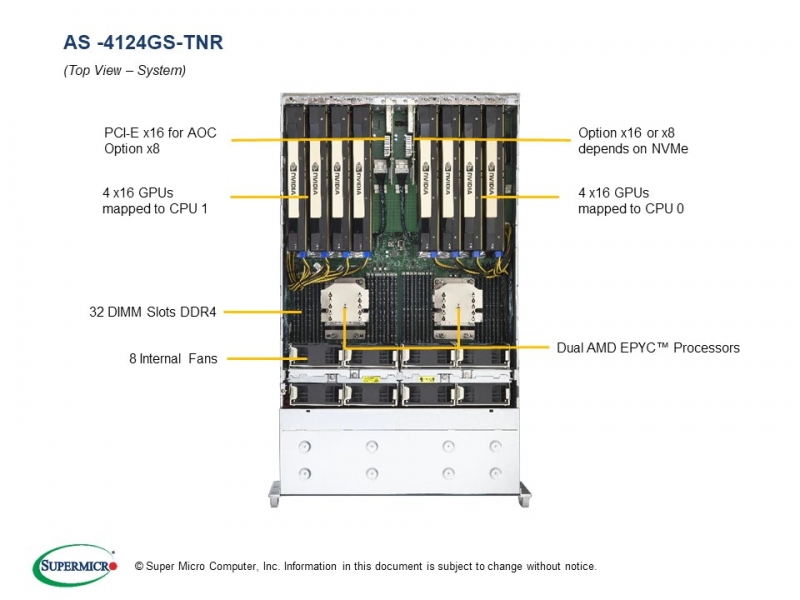

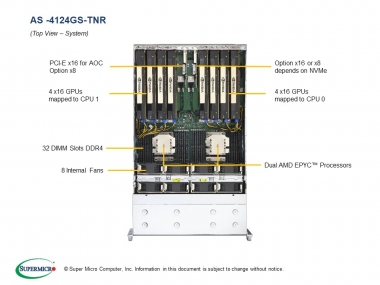

Dual AMD EPYC™ 7003/7002 Series Processors

32 DIMM slots*

8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM

9 PCI-E 4.0 x16 (FHFL) slots

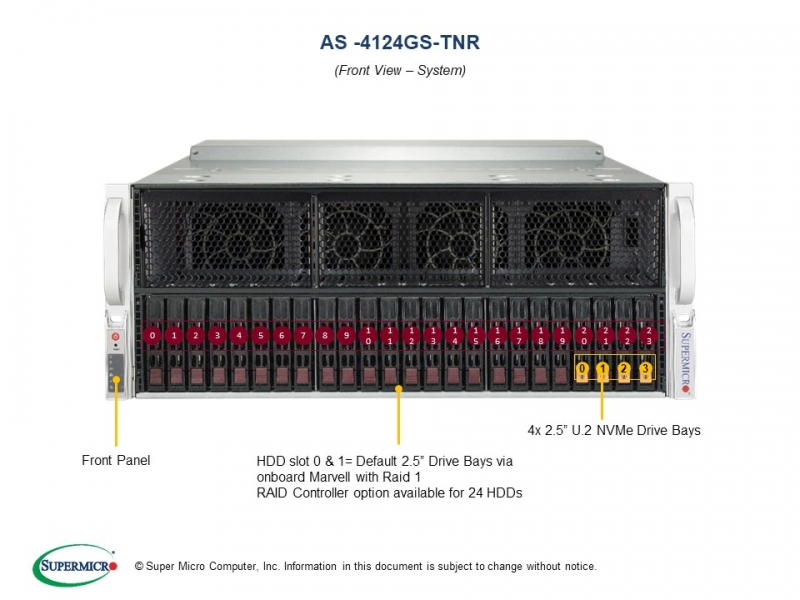

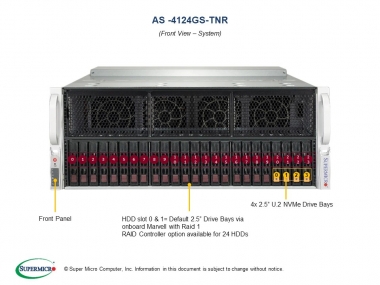

24x 2.5" SAS/SATA drive bays
2x 2.5" SATA supported natively*
4x 2.5" NVMe supported natively
RAID controller option available for 24 HDDs

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length)
NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct
Supports both active and passive cooled GPUs

PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root,
NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)

8x 11.5K RPM heavy duty fans

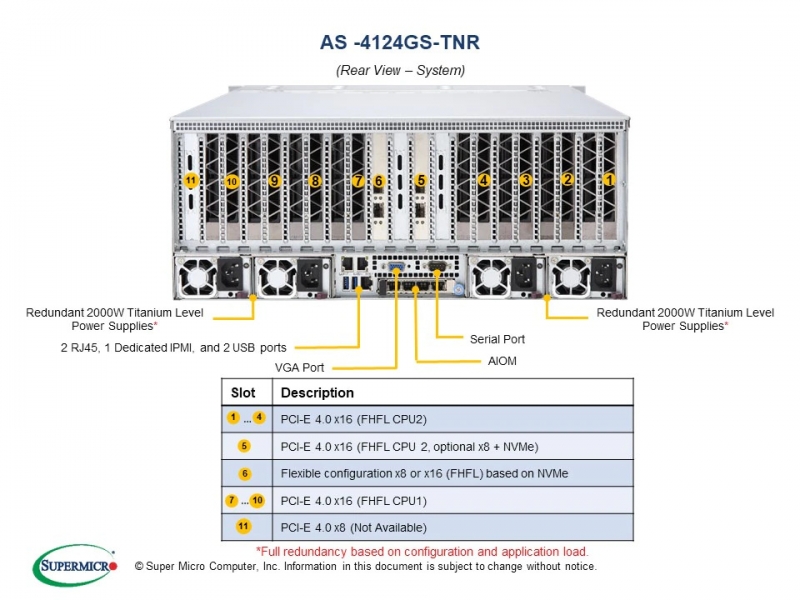

2000W (2+2) Redundant Power Supplies Titanium Level

2 RJ45 GbE LAN ports (rear)
1 RJ45 Dedicated IPMI LAN port

SATA/SAS: 24 SATA/SAS with a controller
LAN: 2 RJ45 GbE LAN ports (rear) 1 RJ45 Dedicated IPMI LAN port
USB: 2 USB 3.0 ports (rear)
Video:1 VGA Connector
COM Port: 1 COM port (header)
