Numer produktu: R2U2SKLSC825
Serwer rack 2U z 8 kieszeniami HDD Hot-swap 3.5" oraz wydajnym zasilaczem 600W 80 Plus Titanium Certified to niezwykle funkcjonalne i niezawodne urządzenie. Serwer posiada dwa sockety LGA 3647. Producent zadbał o możliwość dalszej rozbudowy serwera i poszerzenie pamięci RAM nawet do 1 TB. Płyta główna posiada 6 portów PCI-E oraz w sumie 7 wejść USB.
5 711,43 zł
brutto
Producent: Supermicro
Termin realizacji: 14 dni
Supermicro SC825 TQC-600LPB - Montowany w stojaku 2U - rozszerzenie ATX - SATA/SAS - wymiana podczas pracy 600 wat - czarny

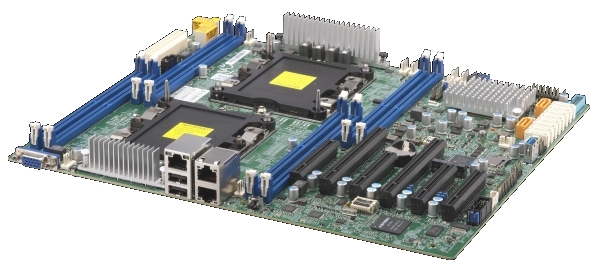

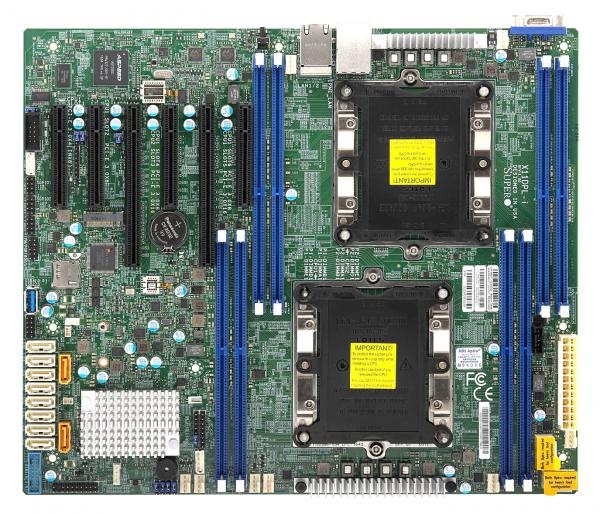

SUPERMICRO X11DPL-I - Płyta główna - ATX - Socket P - 2 obsługiwane procesory - C621 Chipset - USB 3.0 - 2 x Gigabit LAN - wbudowana karta graficzna
Supermicro SNK-P0068AP4 - Cooler procesora - (na: LGA3647) - 60 mm - 2U
Supermicro SNK-P0068AP4 - Cooler procesora - (na: LGA3647) - 60 mm - 2U
Rozmiar | 2U chassis - supports for maximum motherboard sizes: 13.68" x 13.4"; E-ATX 12" x 13", ATX 12" x 10" motherboards |
---|---|
Zasilacz | 600W High-Efficiency Power Supply w/PMBus 1.2, I2C, PFC, and Digital Switching |
Kieszenie na dyski | 8x 3.5" hot-swap SAS/SATA drive bay with SGPIO |
Wentylatory | 3 x 8cm (7000 RPM) hot-swap PWM cooling fan |
Porty | 2 x Optional USB 2.0 ports 1 x Optional COM port tray 2 x Optional USB 3.0 ports |
Dodatkowe cechy | 7 low-profile expansion slot(s), Power button, Power switch & 6 LED Indicators |
Producent | Supermicro |
---|---|
Symbol | MBD-X11DPL-i-O |
Wymiary | ATX 12.076" x 10.15" (30.67cm x 25.78cm) |
Gniazdo Procesora | Dual Socket P (LGA 3647) |
Obsługiwane procesory | Intel Xeon Scalable Processors |
Chipset | Intel C621 |
Sloty pamięci RAM | 8x DDR4 |
Obsługiwana pamięć RAM | 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM |
Max pamięć RAM | Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots |
Karta sieciowa | Dual LAN with Lewisburg Marvell 88E1512 PHY |
Porty LAN | 2 RJ45 Gigabit Ethernet LAN ports |
Porty SATA | 10 SATA3 (6Gbps) port |
M.2 | M.2 Interface: 1 SATA/PCI-E 3.0 x4 |

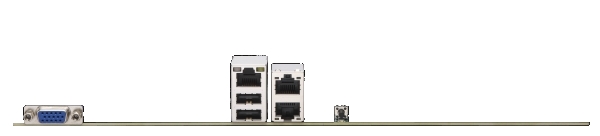

Porty USB | 4 USB 2.0 ports (2 rear + 2 headers); 3 USB 3.0 ports (2 headers + 1 Type A) |
Sloty PCI-E | 2 PCI-E 3.0 x16; 3 PCI-E 3.0 x8; 1 PCI-E 3.0 x4 (in x8 slot) |
BIOS | AMI UEFI |
IPMI | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
Manufacturer | Supermicro |
---|---|
Server Form Factor | 2U |
Cooling Type | Active |
CPU Configuration | Uni Processor, Dual Processor |
Supported CPU SKU | Intel® Xeon® Scalable Processors |
Supported CPU Socket | FCLGA3647-0 (Square Mounting Mechanism) |
Supported CPU TDP | Up to 140 Watts |
Attached Cooling Fan | Speed Control: 4-pin PWM, Rated Voltage: 12.0 VDC, Rated Speed: 8,400 RPM, Acoustic Noise: 52.0 dB(A) at Rated Speed, Fan Dimensions: 60L x 60H x 25D mm, Position: Front Side, MTBF/MTTF: 145,190 Hours @ 40 C Ambient |
Manufacturer | Supermicro |
Server Form Factor | 2U |
Cooling Type | Active |
CPU Configuration | Uni Processor, Dual Processor |
Supported CPU SKU | Intel® Xeon® Scalable Processors |
Supported CPU Socket | FCLGA3647-0 (Square Mounting Mechanism) |
Supported CPU TDP | Up to 140 Watts |
Attached Cooling Fan | Speed Control: 4-pin PWM, Rated Voltage: 12.0 VDC, Rated Speed: 8,400 RPM, Acoustic Noise: 52.0 dB(A) at Rated Speed, Fan Dimensions: 60L x 60H x 25D mm, Position: Front Side, MTBF/MTTF: 145,190 Hours @ 40 C Ambient |
