Numer produktu: SSG-2028R-E1CR48L
20 003,01 zł
brutto
Producent: Supermicro
Czas dostawy: zapytaj
Complete System Only
Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 24 HDDs and 1 NIC or SIOM card).

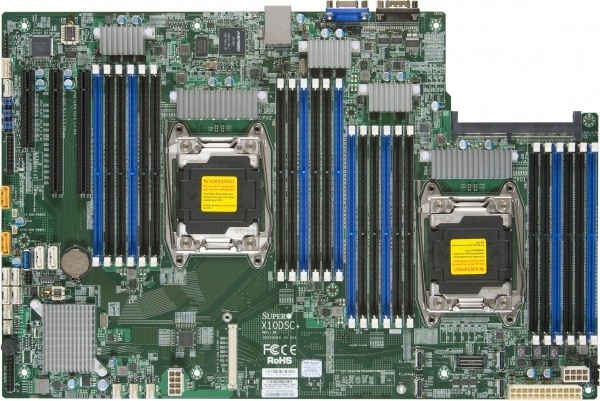

| Płyta główna | Supermicro X10DSC+ |
|---|---|
| CPU | Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) |
| Core/Cache | Up to 22 Cores / Up to 55MB Cache |
| System Bus | QPI up to 9.6 GT/s |
| Memory Capacity | 24x 288-pin DDR4 DIMM slots |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Chipset | Intel C612 |
| SATA | SATA3 (6Gbps) via Intel C612 controller |
| SAS3 | Broadcom 3008 SAS3 IT mode |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| Network Controllers | SIOM support for flexible networking options |
| Video | ASPEED AST2400 BMC |
| USB | 3x USB 3.0 ports (2 rear + 1 Type A) |
| Video output | 1x VGA |
| Serial Port/Header | 2x Fast UART 16550 serial |
| TPM | 1 TPM Header |
| PCI-E | 2 PCI-E 3.0 x16 |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Software | Intel Node Manager 3.0 |
| Power Configurations | ACPI Power Management |
| Fan | 4x 4-pin fan headers (up to 4 fans) |
| LED | CPU / System Overheat LED |
| Other Features | Chassis intrusion detection |
| Obudowa | CSE-226STS-R1K62P1 |
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 30.2" (767mm) |

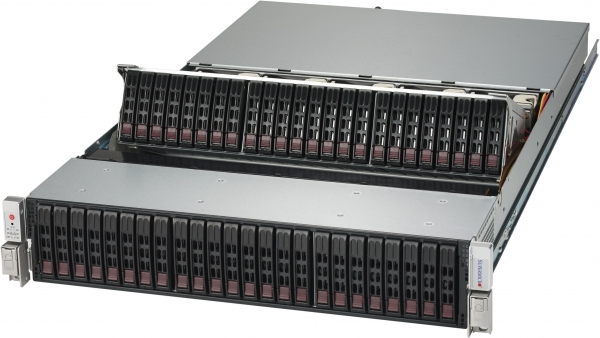

| Drive Bays | 48 Hot-swap 2.5" SAS3/SATA3 drive bays |
| Backplane | Two 24 port SAS3 12G expander backplanes, each supporting up to 24x 2.5" SAS3 drives |
| Fans | 5 Hot-swap 8cm redundant PWM cooling fans |
| Power Supply | 1600W Redundant Power Supplies with PMBus |
