Numer produktu: SSG-6048R-E1CR72L
0,00 zł
brutto
Producent: Supermicro
Czas dostawy: zapytaj

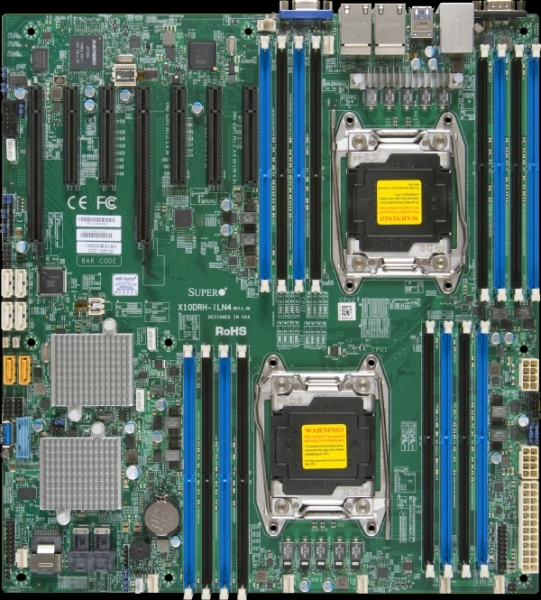

Płyta główna | Supermicro X10DRH-iT |
---|---|
CPU | Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) |
Core/Cache | Up to 22 Cores / Up to 55MB Cache |
System Bus | QPI up to 9.6 GT/s |
Memory Capacity | 16x 288-pin DDR4 DIMM slots |
Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
DIMM Sizes | RDIMM: 32GB, 16GB, 8GB, 4GB |
Memory Voltage | 1.2V |
Error Detection | Corrects single-bit errors |
Chipset | Intel C612 |
SAS | SAS3 (12Gbps) via 3x Broadcom 3008 (AOC) |
SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
IPMI | Support for Intelligent Platform Management Interface v.2.0 |
Network Controllers | Intel X540 Dual Port 10GbE |
Video | ASPEED AST2400 BMC |
LAN | 2 RJ45 10GBase-T LAN ports |
USB | 2 USB 3.0 ports (rear) |
Video output | 1x VGA |
Serial Port/Header | 1 Fast UART 16550 port / 1 Header |
PCI-E | 1x PCI-E 3.0 x16 |
BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
Software | Intel Node Manager 3.0 |
Power Configurations | ACPI Power Management |
Fan | 8x 4-pin fan headers (up to 8 fans) |
LED | CPU / System Overheat LED |
Other Features | Chassis intrusion detection |
Obudowa | CSE-847DTS-R2K04LPB |
Height | 7" (178mm) |
Width | 17.2" (437mm) |
Depth | 35" (889mm) |
Hot-Swap | 72x 3.5" Hot-swap SAS3/SATA3 drive bays with SES2 |
Fixed Drive Bays | 2x 2.5" Fixed bays |
Backplane | SAS3/SATA3 single expander per backplane |
Fans | 7x 92mm hot-swap cooling fans |
Power Supply | 2000W Redundant Power Supplies with PMBus |
