Numer produktu: WSGS500RXE
2130,19 zł
brutto
Producent: Gigaserwer/Supermicro
Termin realizacji: 7 - 10 dni
Obudowa serwerowa GS50-000R /CSE-GS5B-000R
| CPU | Intel 8th/9th Generation Core i9/Core i7/Corei5/Corei3/Pentium/Celeron series Processor, Intel Xeon E processor (Coffee Lake-S) Server, Intel Xeon E processor (Coffee Lake-S) Workstation., Single Sock |
|---|---|
| Memory Capacity | Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots |
| Network Controllers | Single LAN with Intel Ethernet Controller I210-AT Shared with IPMI Single LAN with Intel PHY I219LM LAN controller |
| Memory Type | 2666/2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM |
| DIMM Sizes | 1GB, 2GB, 4GB, 8GB, 16GB |
| Memory Voltage | 1.2V |
| Chipset | Intel C246 |
| SATA | Intel C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2500 |
| Audio | ALC 888S HD Audio |
| Graphics | Aspeed AST2500 BMC Intel UHD P630 graphic(For CPU Xeon E-21XXG series only) |
| LAN | 2 1GbE LAN ports |
| USB | 2 USB 2.0 ports (2 headers, Type A)) 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 headers) 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 header, 1 Type A) |
| Serial Port/Header | 1 COM Port (1 header) |
| PCI-E | 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 2 PCI-Ex16 slots are running at NA/16, or 8/8 1 - 5V PCI 32bit |
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4 Form Factor: 2242/2260/2280/22110 Key: M-Key M.2#1~2 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2 |
| BIOS Type | UEFI 128Mb |
| Software | IPMI2.0, SSM, SUM, SuperDoctor 5, Watchdog |
| Power Configuration | ACPI Power Management ATX Power connector Power-on mode for AC power recovery Keyboard Wakeup from Soft-Off |
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip s |
| Height | 18.1" (460 mm) |
| Width | 7.9" (200 mm) |
| Depth | 19.4" (493 mm) |
| Expansion Slots | 7 full-height & full-length expansion slot(s) |
| Drive Bays | 6 x 3.5" fixed drive bay 4 x 2.5" fixed drive bay |
| Peripheral Drives | 2 x standard 5.25" drive bay |
| Fans | 2 x 12cm front cooling fan(s) 1 x 12cm rear exhaust fan(s) |

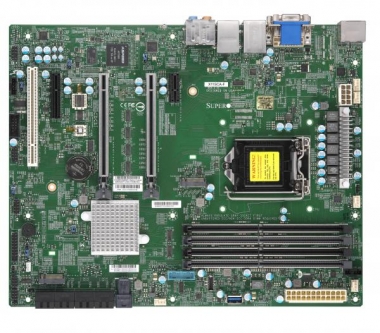

| Płyta główna | X11SCA-F |

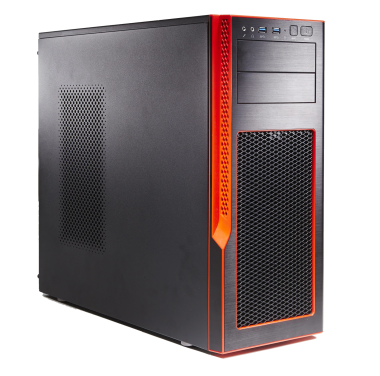

| Obudowa | SuperChassis GS50-000R/GS5B-000R |
