Numer produktu: WSGS5ACE5
2 815,15 zł
brutto
Producent: Gigaserwer/Supermicro
Termin realizacji: 7 - 10 dni

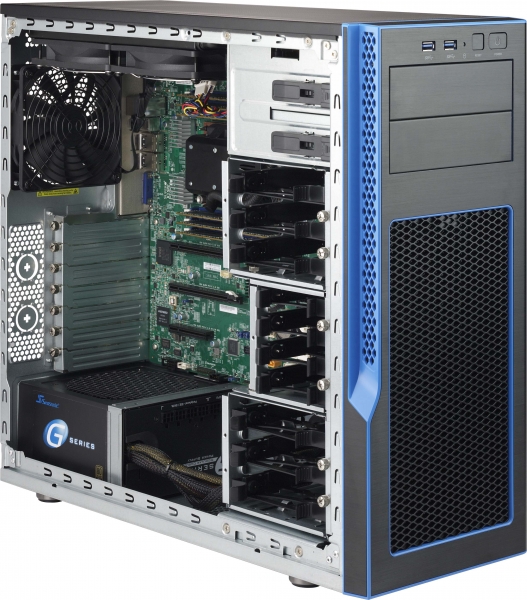

Obudowa serwerowa GS5A-753B/GS5A-754K
| CPU | Intel Core i7 series, Intel Xeon Processor E5-1600 v3, Intel Xeon Processor E5-1600 v4, Intel Xeon processor E5-2600 v3, Intel Xeon processor E5-2600 v4. Single Socket R3 (LGA 2011) supported, CPU TDP |
|---|---|
| Memory Capacity | Up to 256GB Registered ECC RDIMM; Up to 1TB 3DS ECC LRDIMM Up to 128GB Unbuffered ECC/non-ECC UDIMM, in 8 DIMM slots Up to 512GB ECC LRDIMM , UDIMM will be only available for Core i7 processors. , 240 |
| Network Controllers | Dual LAN with Intel i210 Gigabit Ethernet Controller |
| Drive Bays | 6 x 3.5" fixed drive bay 4 x 2.5" fixed drive bay |
| Memory Type | 2400?/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| Chipset | Intel C612 |
| SATA | Intel C612 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Audio | ALC 1150 HD Audio |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 8 USB 3.0 ports (6 rear + 2 headers); 4 USB3.0 ports could be upgraded to 4 USB3.1(10 Gb/s) ports (2 rear, 2 by header)(BOM option) |
| Serial Port/Header | 1 COM Port (1 header) |
| PCI-E | 4 PCI-E 3.0 x16; 2 PCI-E 2.0 x1 (in x4 slot),; 4 PCI-E Gen3x16 slots are running at 16/16/NA/8 or 16/8/8/8; PCI-E Slot#1 (x4) and Slot#4 (x16) are disabled when an Intel Core i7-5820K is installed); P |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Software | SuperDoctor 5, SuperDoctor III, Watchdog |
| Power Configuration | ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery |
| Height | 18.1" (460 mm) |
| Width | 7.9" (200 mm) |
| Depth | 19.4" (493 mm) |
| Expansion Slots | 7 full-height & full-length expansion slot(s) |
| Peripheral Drives | 2 x standard 5.25" drive bay |
| Fans | 2 x 12cm front cooling fan(s) 1 x 12cm rear exhaust fan(s) |
| Power Supply | PS2 750W Multi-output Power Supply for Desktop, semi-modular cable output |
| Power Supply Safety / EMC | BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL |

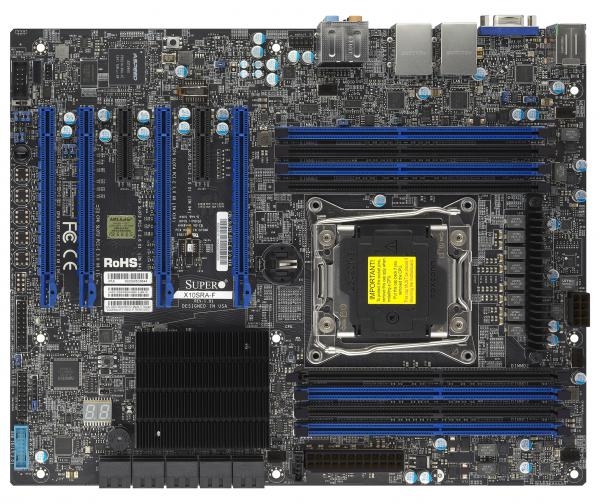

| Płyta główna | X10SRA |

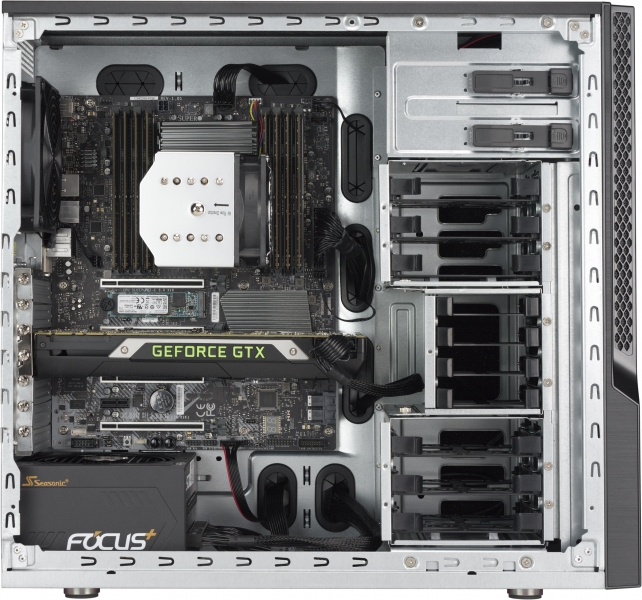

| Obudowa | SuperChassis GS5A-754K/GS5A-753B |
