Numer produktu: WSGS5AXSLK
3434,30 zł
brutto
Producent: Gigaserwer/Supermicro
Termin realizacji: 7 - 10 dni

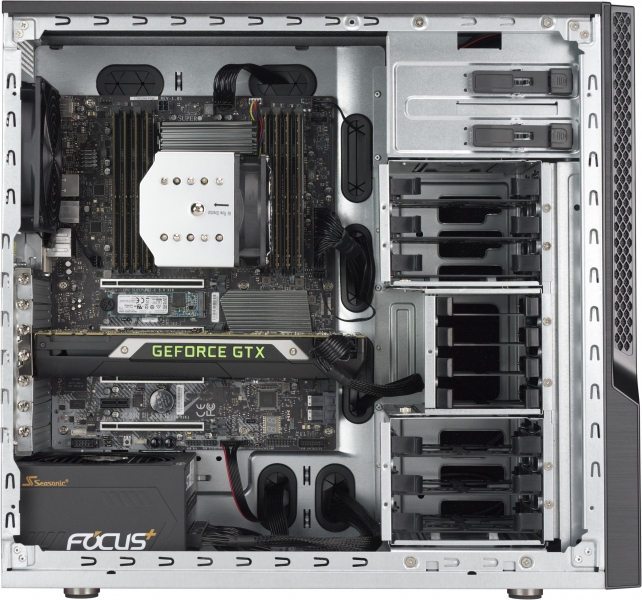

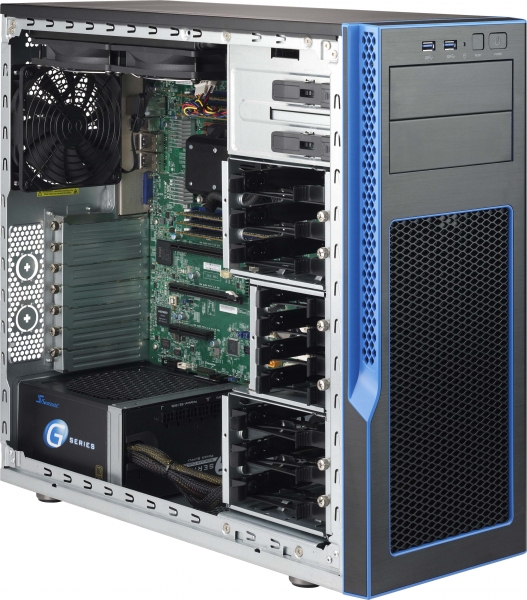

Obudowa serwerowa GS5A-753B/GS5A-754K

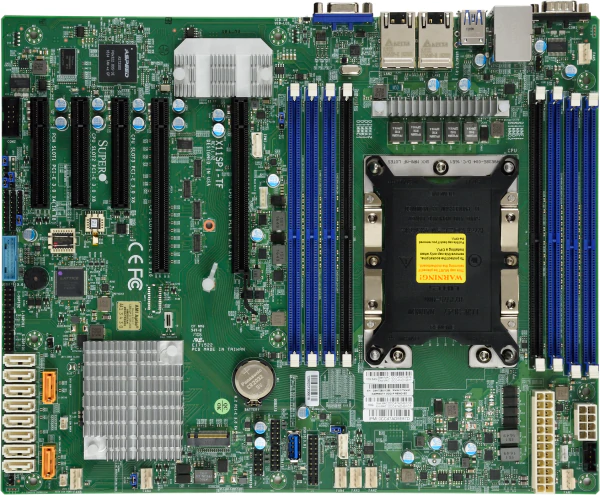

CPU | Intel Xeon Scalable Processors. Single Socket P (LGA 3647) supported, CPU TDP support 205W |
---|---|
Memory Capacity | 8x 288-pin DDR4 DIMM slots, Up to 1TB ECC 3DS LRDIMM, Up to 512GB ECC LRDIMM, Up to 256GB ECC RDIMM |
Network Controllers | Dual LAN with 10GBase-T with Intel X722 + X557 |
Drive Bays | 6 x 3.5" fixed drive bay 4 x 2.5" fixed drive bay |
Memory Type | 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM |
DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 64GB, 128GB |
Memory Voltage | 1.2V |
Error Detection | Corrects single-bit errors |
Chipset | Intel C622 |
SATA | Intel C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
IPMI | ASPEED AST2500 |
Graphics | Aspeed AST2500 BMC |
SATA | 10 SATA3 (6Gbps) port |
LAN | 2 RJ45 10GBase-T ports |
USB | 6 USB 2.0 ports (2 rear + 4 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) |
Video | 1 VGA port |
Serial Port/Header | 2 COM Ports (1 rear, 1 header) |
PCI-E | 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x16 (x16 or x8 ), 1 PCI-E 3.0 x8 (x0 or x8 ), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) |
M.2 | M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key Double Height Connector |
BIOS Type | AMI UEFI |
Software | Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor 5, Watchdog |
Power Configuration | ACPI Power Management Power-on mode for AC power recovery |
Other Features | ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL |
Height | 18.1" (460 mm) |
Width | 7.9" (200 mm) |
Depth | 19.4" (493 mm) |
Expansion Slots | 7 full-height & full-length expansion slot(s) |
Peripheral Drives | 2 x standard 5.25" drive bay |
Fans | 2 x 12cm front cooling fan(s) 1 x 12cm rear exhaust fan(s) |
Power Supply | PS2 750W Multi-output Power Supply for Desktop, semi-modular cable output |
Power Supply Safety / EMC | BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL |
