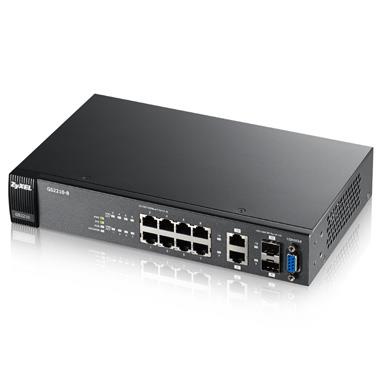

Switch zarządzalny Zyxel GS2210-8

ZYXEL

Sieci -urządzenia przewodowe

Switch zarządzalny Zyxel GS2210-8

Switch zarządzalny

Gigabit Ethernet

10

0 szt.

8 szt.

0 szt.

2 szt.

0 szt.

0 szt.

0 szt.

Port konsoli szeregowy

Nie

IEEE 802.3 10 Base-T (RJ45)

IEEE 802.3u 100 Base-T (RJ45)

IEEE 802.3ab 1000 Base-T (RJ45)

IEEE 802.3z Gigabit Ethernet

IEEE 802.3az Green Ethernet / Energy-Efficient Ethernet (EEE)

IEEE 802.3x Flow control

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.1AB LLDP (Link Layer Discovery Protocol)

IEEE 802.1D STP (Spanning Tree Protocol)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1S Multiple Spanning Tree Protocol (MSTP)

IEEE 802.1Q VLAN (Virtual Local Area Network - Dot1q)

IEEE 802.1p Priorytetyzacja ruchu

IEEE 802.1x Port-based Network Access Control (PNAC) / Radius Port Access Authentication

16000 Bajty

Tak

Tak

20.0

1500 KB

Desktop

150 x 250 x 44

1425

http://www.zyxel.com/pl/pl/products_services/xgs2210_gs2210_series.shtml

Loop guard; Root guard; BPDU guard; ErrDisable recovery
MRSTP (ZyXEL proprietary); Dual configuration files; Dual images
802.1Q Static VLANs/Dynamic VLANs: 1 K/4 K; IP Subnet-based VLAN
Port-based VLAN; Protocol-based VLAN; MAC-based VLAN; Private VLAN
VLAN ingress filtering; LACP algorithm of source/destination MAC/IP
Voice VLAN; GVRP; L2PT
Security: Port security, Layer 2 MAC filtering, Layer 3 IP filtering
Security: Layer 4 TCP/UDP socket filtering, Static MAC forwarding
Security: Multiple RADIUS servers, Multiple TACACS+ servers, IEEE 802.1x
Security: 802.1x VLAN and 802.1p assignment by RADIUS
Security: Login authentication by RADIUS, Login authentication by TACACS+
Security: Authorization on RADIUS, Authorization on TACACS+, SSH v1/v2, SSL
Security: TACACS+ accounting, MAC freeze, DHCP snooping, ARP inspection
Security: Static IP-MAC-Port binding, Policy-based security filtering
Security: Port isolation, IP source guard, MAC search, Guest VLAN
Security: ACL packet filtering (IPv4/IPv6), CPU protection
Security: Interface related trap enable/disable (by port)
No. of hardware queues per port: 8
802.1p queuing methods: SPQ, WRR, WFQ
Storm control: broadcast, multicast, unknown unicast (DLF)
Port-based rate limiting (ingress/egress)
Rate limiting per IP/TCP/UDP per port
Policy-based rate limiting
802.3x flow control
802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
DiffServ (DSCP)
L2 multicast, IGMP snooping (v1, v2, v3), IGMP snooping Fast Leave
Configurable IGMP snooping timer and priority
IGMP snooping statistics, IGMP throttling, MVR support, IGMP filtering
IGMP snooping immediate leave, IGMP proxy mode & snooping mode selection
MLD snooping
SNMP v1, v2c, v3, SNMP trap group, RMON (1, 2, 3, 9), ICMP echo/echo reply
Syslog, IEEE 802.1AB LLDP, IEEE 802.1AB LLDP-MED
IPv6 over Ethernet (RFC 2464), IPv6 addressing architecture (RFC 4291)
Dual stack (RFC 4213), ICMPv6 (RFC 4443), Path MTU (RFC 1981)
Minimum path MTU size of 1280 (RFC 5095)
Encapsulation for maximum PMTU of 1500
Neighbor discovery (RFC 4861)
DHCPv6 relay
Default DHCP client mode
ZyXEL iStackingTM, Web interface, Management through SNMP
Remote firmware upgrade by Web, Configuration saving and retrieving
Configure clone, DHCP relay per VLAN, DHCP client, Daylight saving, NTP
Port mirroring, RS-232 out-of-band console port
MIB: ZyXEL private common MIB
MIB: RFC 1066 TCP/IP-based MIB
MIB: RFC 1213, 1157 SNMPv2c/v3 MIB
MIB: RFC 1493 bridge MIB
MIB: RFC 1643 Ethernet MIB
MIB: RFC 1757 RMON Group 1, 2, 3, 9
MIB: RFC 2011, 2012, 2013 SNMPv2 MIB
MIB: RFC 2233 SMIv2 MIB
MIB: RFC 2358 Ethernet-like MIB
MIB: RFC 2674 bridge MIB extension
MIB: RFC 2819, 2925 remote management MIB
MIB: RFC 3621 power Ethernet MIB
MIB: RFC 4022 management information base for transmission control protocol
MIB: RFC 4113 management information base for user datagram protocol
MIB: RFC 4292 IP forwarding table MIB
MIB: RFC 4293 Management Information Base (MIB) for IP
Certifications - Safety: LVD, BSMI
Certifications - EMC: FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC
Certifications - RoHS: Level A
Forwarding rate (Mpps): 15
Input voltage of AC: 100 - 240 V AC, 50/60 Hz
Temperatura podczas eksploatacji: 0°C do 50°C
Temperatura podczas przechowywania: od -40°C do 70°C
MTBF: 1,382,030 godz.
Acoustic noise (dBA): 0
